Chajian Sun (插肩榫): The Flush-Shouldered Leg Joint
Chajian sun
Some Ming tables look as if the leg grows up into the apron: a pointed arch of leg wood rises into the apron and the two surfaces run perfectly flush.
That is the chajian sun, the inserted-shoulder joint. Structurally it is a cousin of the jiatou joint, but the leg and apron clasp each other, and the more weight the top carries, the tighter they lock.
- Chinese
- 插肩榫 · chājiān sǔn
- Joins
- Leg, apron and top
- Found in
- Recessed-leg tables and long tables
- Signature parts
- V-shaped shoulder on the leg · matching groove in the apron
- Look
- Leg and apron flush
How it works
Same bones as the jiatou
The leg still tenons into the top, and its upper part is still slotted to clamp the apron.
The shoulder
The difference is on the outside face. The leg’s upper front is pared to a pointed, sloping shoulder, and the apron is grooved where it crosses the leg to the same size and depth. When they come together the apron straddles the shoulder and the two faces finish flush.
Tighter under load
The leg clamps the apron and the apron clamps the leg. The more weight the top puts on the apron, the harder they bear on each other, so nothing can shift sideways or front to back. Because leg and apron flow into each other, makers could also run carved outlines and mouldings round the junction.
How it's made
Step 1Shape the shoulder
Pare the upper part of the leg’s front face to a pointed, sloping shoulder.
Step 2Slot and tenon the leg
Slot the leg top for the apron and leave a tenon for the table top.
Step 3Groove the apron
Cut a groove in the apron where it meets the leg, the same size and depth as the shoulder.
Step 4Drop the apron on
Lower the apron into the slot so it straddles the shoulder.
Step 5Set the top on
Fit the top over the leg tenon.
Step 6Check it’s flush
The leg and apron should finish in one flush surface.
Variations
Separate spandrel heads
A rarer form makes the apron and spandrel heads as separate pieces.
With a hanging pin
A variant hooks the apron onto a pin on the leg from behind.
Can you CNC this?
Possible, with design or setup changes
The pointed shoulder on the leg and the V-groove in the apron have faces sloping to the tool, so they may need a V-bit, a tilted setup or 3D finishing passes. The fit at the point is unforgiving; expect hand fitting.
General note: a round cutter cannot leave a sharp inside corner, so every recess keeps the tool radius. Round the mating edges or add dogbone reliefs. Sloping faces, undercuts and curves may need special bits, extra setups or more axes.
Free STL downloads (one file per part)
- Leg 腿足 · chajian-sun-leg.stl
- Apron 牙条 · chajian-sun-apron.stl
- Top frame 面框 · chajian-sun-top-frame.stl
Proportions are illustrative, not measured dimensions. The files are unitless: scale them to suit and check fits and allowances before cutting. Each file is a closed (watertight) solid with its mortises and slots already cut, exported in its assembled position, ready to import into CAM or modelling software. Licence: CC BY 4.0 (credit: Chinese Joinery).
In museum collections

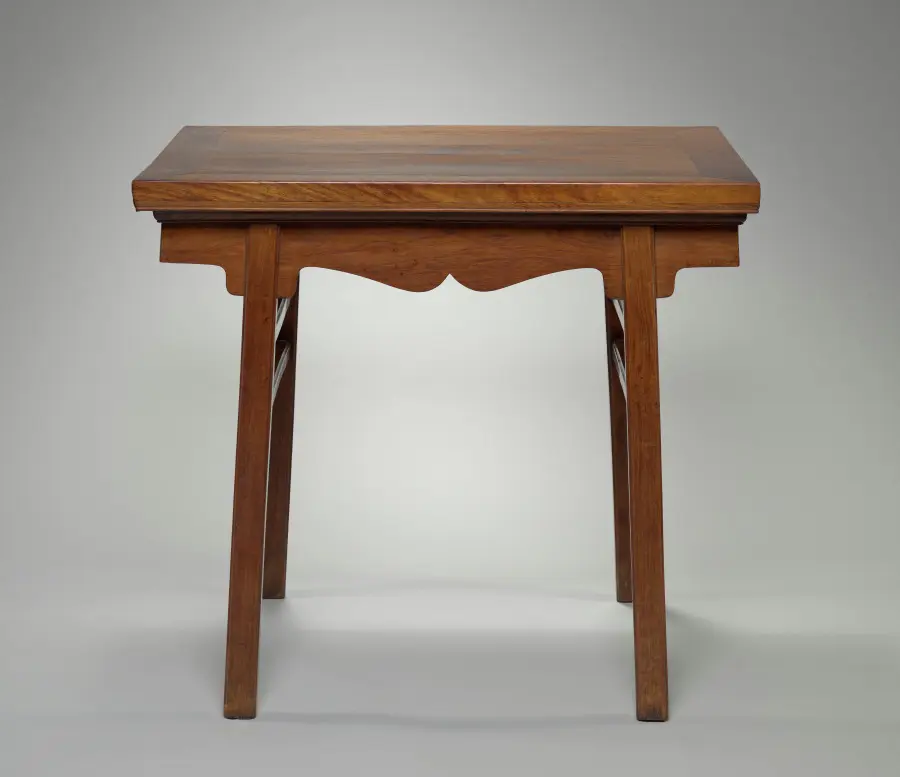

Cleveland Museum of Art
